Lead Acid Battery

OPZS Series

Product Introduction

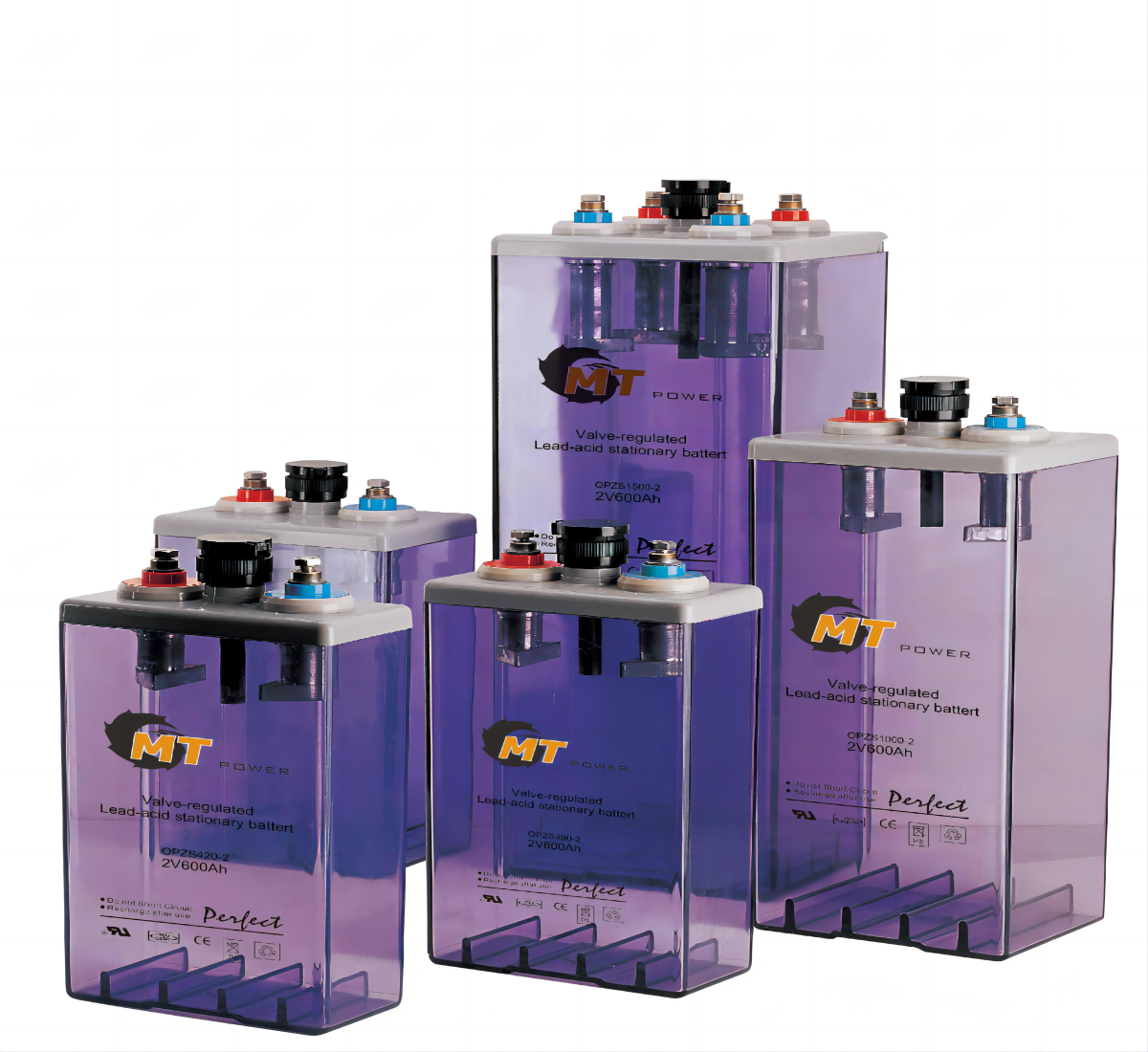

OPZS range battery is a flooded lead acid battery,combine tubular positive framework,it needs regular maintainance.It has the longest life cycle up to 20 years maximumly.They are very suitable for cyclic application,off-grid solar

Product Features

-  The battery has a long life span, under float charging, ambient temperature 25°C, it can operate more than10 years..
-  Excellent recovery ability from deep discharge and keep a long cycle life under deep discharge.
-  Maximum cycle stability and durability.
-  The battery meet the standard specified in IEC896-1 and DIN40736.
-  Water supplement cycle 0.25 - 1 year (normal); 1-2 year (choose water content recombination valve)
-  Strong temperature resistance performance, work well under hot or cold weather
-  Excellent deep cycle and deep discharge performance
-  Superior low current discharge performance
-  Better charge reception capability
-  High standard level safety performance and reliability
-  Modular and personified installation design

Product Parameters

Model

Voltage(V)

Capacity(Ah)

Length(mm)

width(mm)

Height(mm)

Total Height(mm)

Weigth(kg)

Weight 2 (with acid)(kg)

OPzS200

2

200

103

206

355

410

12.8

17.5

OPzS250

2

250

124

206

355

410

15.1

20.5

OPzS300

2

300

145

206

355

410

17.5

24

OPzS350

2

350

124

206

471

526

19.8

27

OPzS400

2

400

145

206

471

526

23

32

OPzS500

2

500

166

206

471

526

26.2

38

OPzS600

2

600

145

206

646

701

32.5

47

OPzS800

2

800

191

210

646

701

45

64

OPzS1000

2

1000

233

210

646

701

53.9

78

OPzS1200

2

1200

275

210

646

701

64

92

OPzS1500

2

1500

275

210

773

828

77

112

OPzS2000

2

2000

399

210

773

828

119.5

150

OPzS2500

2

2500

487

212

771

826

150

204

OPzS3000

2

3000

576

212

772

806

170

230
