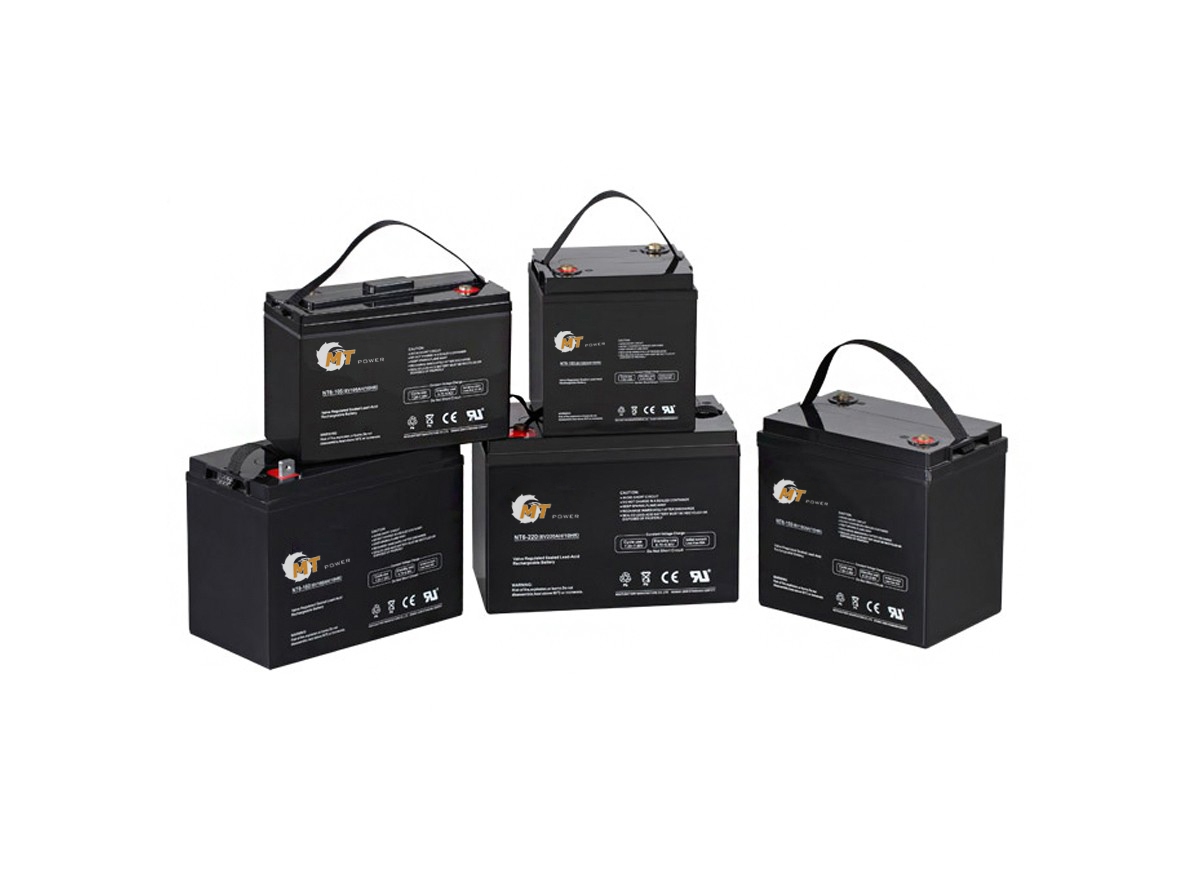

HR(MTH) series is especially designed for heavy load discharge applications with 8 to 15 years design life in float service. By using strong grids and specially designed active material the HR series offers stable performance during high current discharge requirements .The HR series offers 30% more power output than the standard range. Suitable for UPS/EPS, data centers where high current loads are required.
- Superior energy density and very high power output
- Low self-discharge performance
- Wide operation temperature range
- Long design life
- Suitable for UPS/EPS, data centers where high current loads are required
Model | Voltage | Capacity | Rated Power(W) | Dimension(mm) | Weight | Terminal | |||
(V) | (Ah) | Length | Width | Height | Total Height | (kgs) | |||
MTH5-12 | 12 | 5 | 30W | 90 | 70 | 101 | 106 | 1.8 | F1 |
MTH7-12 | 12 | 7 | 35W | 151 | 65 | 94 | 99 | 2.2 | F2 |
MTH9-12 | 12 | 9 | 50W | 151 | 65 | 94 | 99 | 2.6 | F2 |
MTH12-12 | 12 | 12 | 60w | 151 | 98 | 95 | 101 | 3.6 | F2 |
MTH17-12 | 12 | 20 | 116w | 181 | 77 | 167 | 167 | 5.3 | F13 |
MTH24-12 | 12 | 24 | 135w | 175 | 166 | 125 | 125 | 8.6 | F13 |
MTH33-12 | 12 | 33 | 165w | 195 | 130 | 155 | 168 | 11 | F11 |
MTH45-12 | 12 | 45 | 211w | 197 | 165 | 170 | 170 | 14.5 | F11 |
MTH55-12 | 12 | 55 | 260w | 229 | 138 | 208 | 213 | 17.2 | F11 |
MTH65-12 | 12 | 75 | 370w | 350 | 167 | 179 | 179 | 22 | F11 |
MTH75-12 | 12 | 75 | 320w | 258 | 166 | 210 | 215 | 23 | F21 |
MTH90-12 | 12 | 90 | 420w | 306 | 169 | 210 | 215 | 28 | F21 |

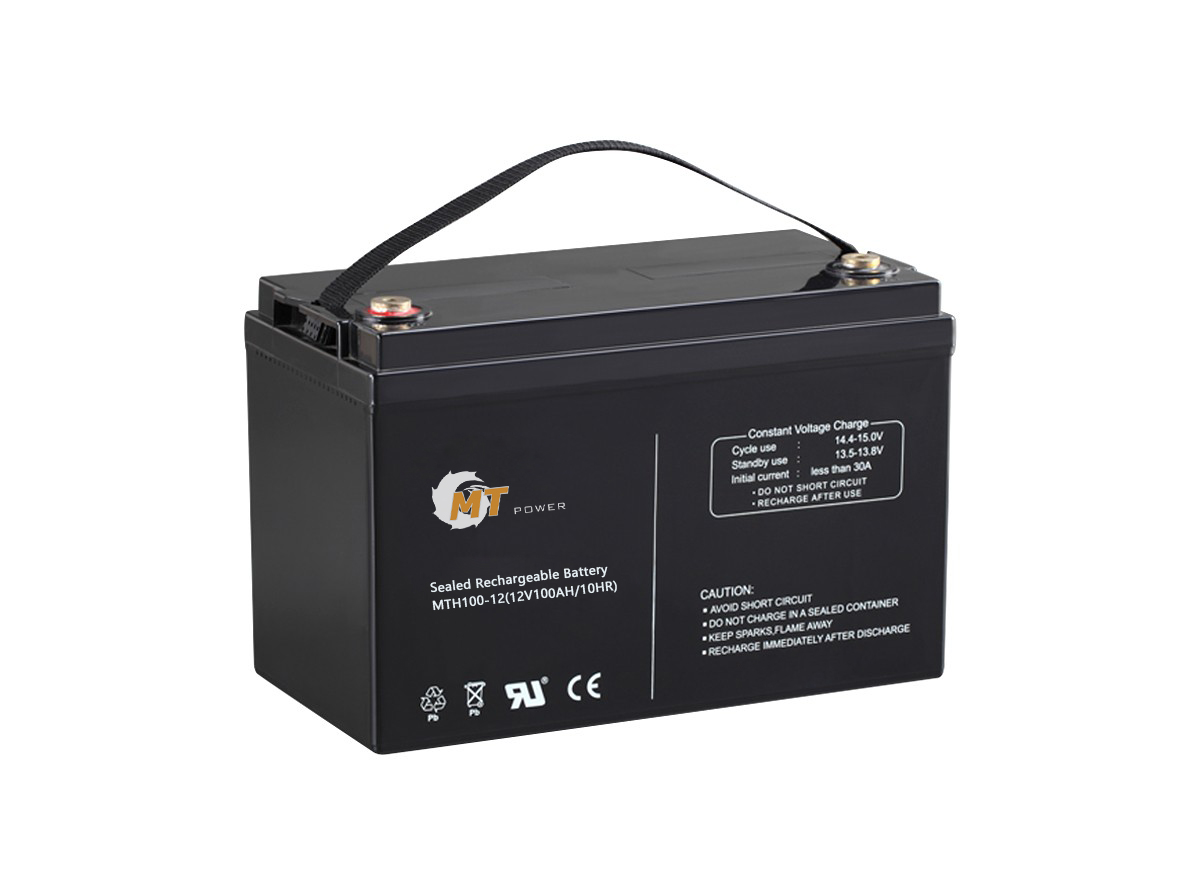

MTH100-12 | 12 | 100 | 470w | 330 | 171 | 215 | 220 | 32 | F12 |
MTH120-12 | 12 | 120 | 560w | 410 | 176 | 227 | 227 | 35.5 | F12 |
MTH135-12 | 12 | 134 | 620W | 341 | 173 | 283 | 287 | 41 | F12 |
MTH150-12 | 12 | 150 | 650w | 482 | 170 | 240 | 240 | 44 | F12 |
MTH200-12 | 12 | 200 | 890w | 530 | 209 | 215 | 220 | 57 | F12 |
MTH230-12 | 12 | 230 | 1010w | 522 | 238 | 218 | 223 | 65 | F12 |
