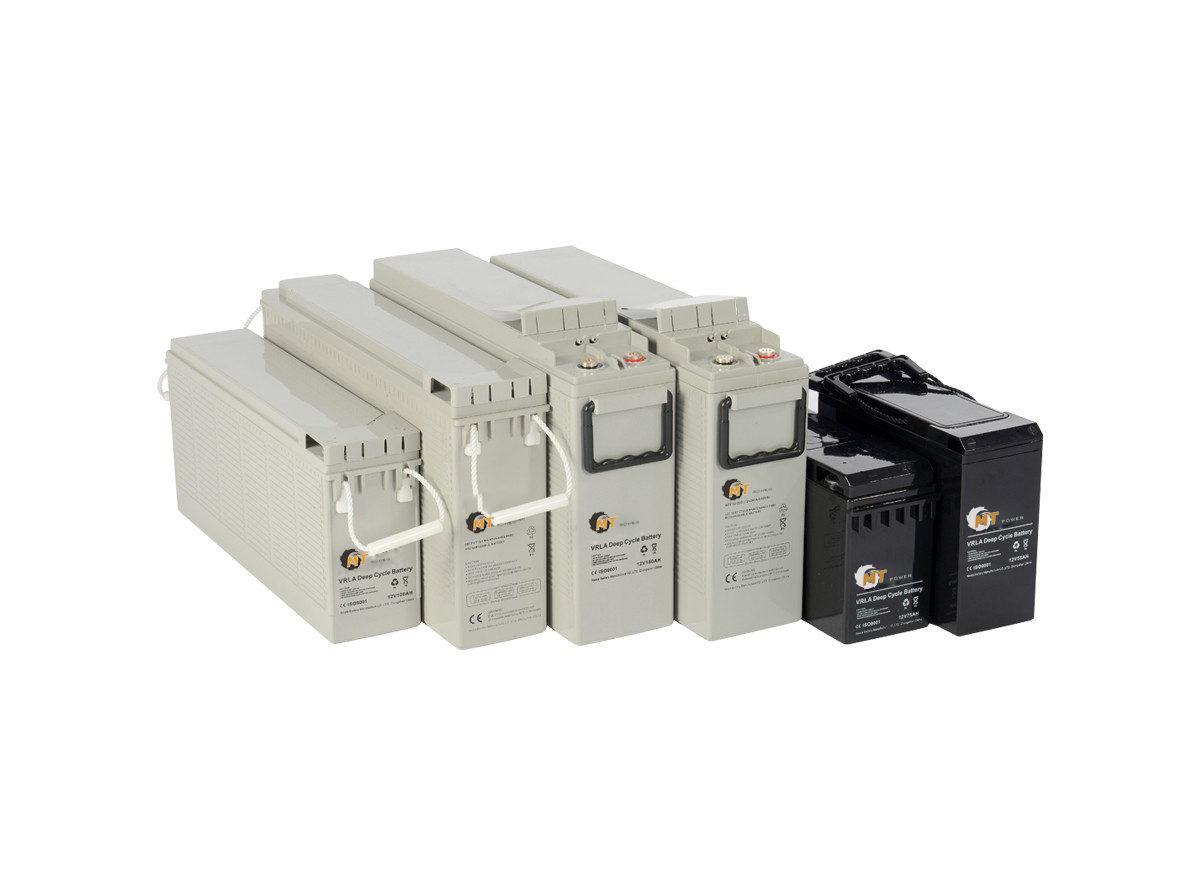

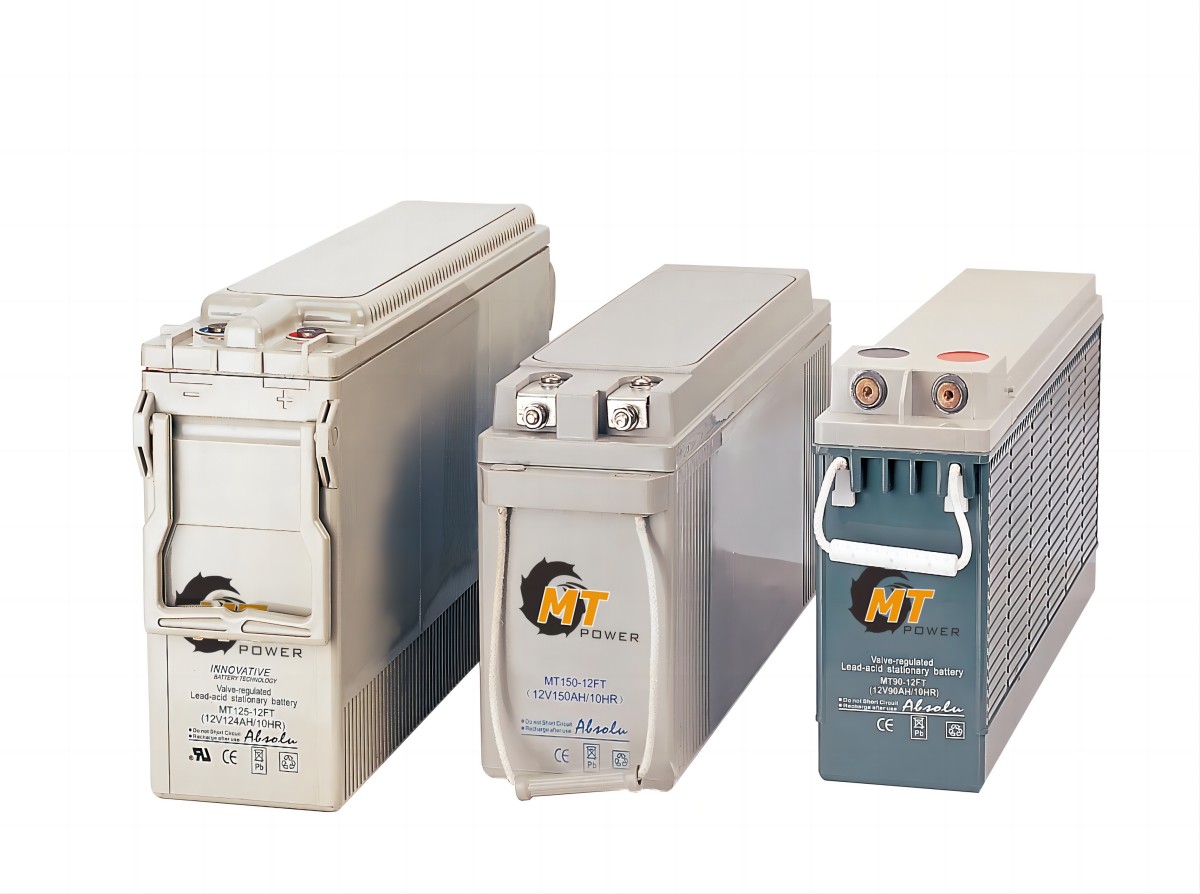

FT (Front Terminal) Series is specially designed for telecom use with 12 years design life in float service. With terminals at the front, these batteries are easy to install and maintained. By adopting a new AGM separator and centralised venting system, the battery can be installed in any position while maintaining high relaibility. The dimensions of the FT series is designed for 19" and 23" cabinet installation. It is suitable for UPS/EPS applications.
- Designed for telecom use
- A designed floating charge life of 12 years
- Low self-discharge rate, allowing for a long rest period
- Excellent high rate discharge performance
- Unique handle structure, facilitating handling and installation
- Application: telecom systems, UPS/EPS, control systems, electric power systems, etc.
Model | Voltage | Capacity | Dimension(mm) | Weight | Terminal | |||
(V) | (Ah) | Length | Width | Height | Total Height | (kgs) | ||
MTF50-12 | 12 | 50 | 277 | 106 | 222 | 229 | 16 | F11 |
MTF80-12 | 12 | 80 | 507 | 110 | 223 | 238 | 26.2 | F11 |
MTF100-12 | 12 | 100 | 507 | 110 | 223 | 238 | 29 | F18 |
MTF105-12 | 12 | 105 | 395 | 110 | 286 | 293 | 32.5 | F12 |
MTF120-12 | 12 | 120 | 551 | 110 | 288 | 288 | 40 | F15 |
MTF150-12 | 12 | 150 | 551 | 110 | 288 | 288 | 44 | F15 |
MTF180-12 | 12 | 180 | 561 | 125 | 316 | 316 | 53.5 | F15 |
MTF200-12 | 12 | 200 | 561 | 125 | 316 | 316 | 56.5 | F15 |
