Standard(MT) series is a general purpose battery with 6~8 years design life in float service . It meets with IEC and JIS standards .With up-dated AGM valve regulated technology and high purity raw materials, the MT series battery has reliable standby service life. It is suitable for UPS/EPS, medical equipment, emergency light and security systems applications.
- Maintenance-free, replenishment free, and reusable when used in a safe environment
- A long service life of 5-10 years
- High safety, special low impedance, and strong charge acceptance
- Excellent tightness (no leakage of liquid or acid gas)
- Extremely low self-discharge, making the product highly reliable
- Installable in any direction, facilitating safe transportation
Typical Applications
Model | Voltage | Capacity | Dimension(mm) | Weight | Terminal | |||
(V) | (Ah) | Length | Width | Height | Total Height | (kgs) | ||
MT3-4 | 4 | 3 | 47 | 47 | 101 | 106 | 0.37 | F1 |
MT3.2-4 | 4 | 3.2 | 90 | 34 | 60 | 66 | 0.44 | F1 |
MT3.5-4 | 4 | 3.5 | 47 | 47 | 101 | 106 | 0.43 | F1 |
MT4-4 | 4 | 4 | 47 | 47 | 101 | 106 | 0.45 | F1 |
MT4.5-4 | 4 | 4.5 | 47 | 47 | 101 | 106 | 0.48 | F1 |
MT5-4 | 4 | 5 | 70 | 47 | 101 | 106 | 0.64 | F1 |
MT6-4 | 4 | 6.5 | 70 | 47 | 99 | 105 | 0.68 | F1 |
MT7-4 | 4 | 7 | 70 | 47 | 99 | 105 | 0.71 | F1 |
MT8-4 | 4 | 8 | 70 | 47 | 99 | 105 | 0.8 | F1 |
MT1.2-6 | 6 | 1.2 | 97 | 24 | 51 | 57 | 0.26 | F1 |
MT2.8-6 | 6 | 2.8 | 66 | 33 | 100 | 105 | 0.55 | F1 |
MT3.2-6 | 6 | 3.2 | 134 | 34 | 60 | 65 | 0.62 | F1 |
MT3.5-6 | 6 | 3.5 | 70 | 47 | 101 | 106 | 0.66 | F1 |
MT4-6 | 6 | 4 | 70 | 47 | 101 | 105 | 0.63 | F1 |
MT4.5-6 | 6 | 4.5 | 70 | 47 | 101 | 105 | 0.68 | F1 |
MT5-6 | 6 | 5 | 70 | 47 | 101 | 105 | 0.71 | F1 |
MT5.5-6 | 6 | 5 | 70 | 47 | 101 | 105 | 0.76 | F1 |
MT6-6 | 6 | 6 | 70 | 47 | 101 | 106 | 0.88 | F1 |
MT6-7 | 6 | 7 | 151 | 34 | 94 | 99 | 1.05 | F1/F2 |
MT10-6 | 6 | 10 | 151 | 50 | 94 | 99 | 1.58 | F1 |

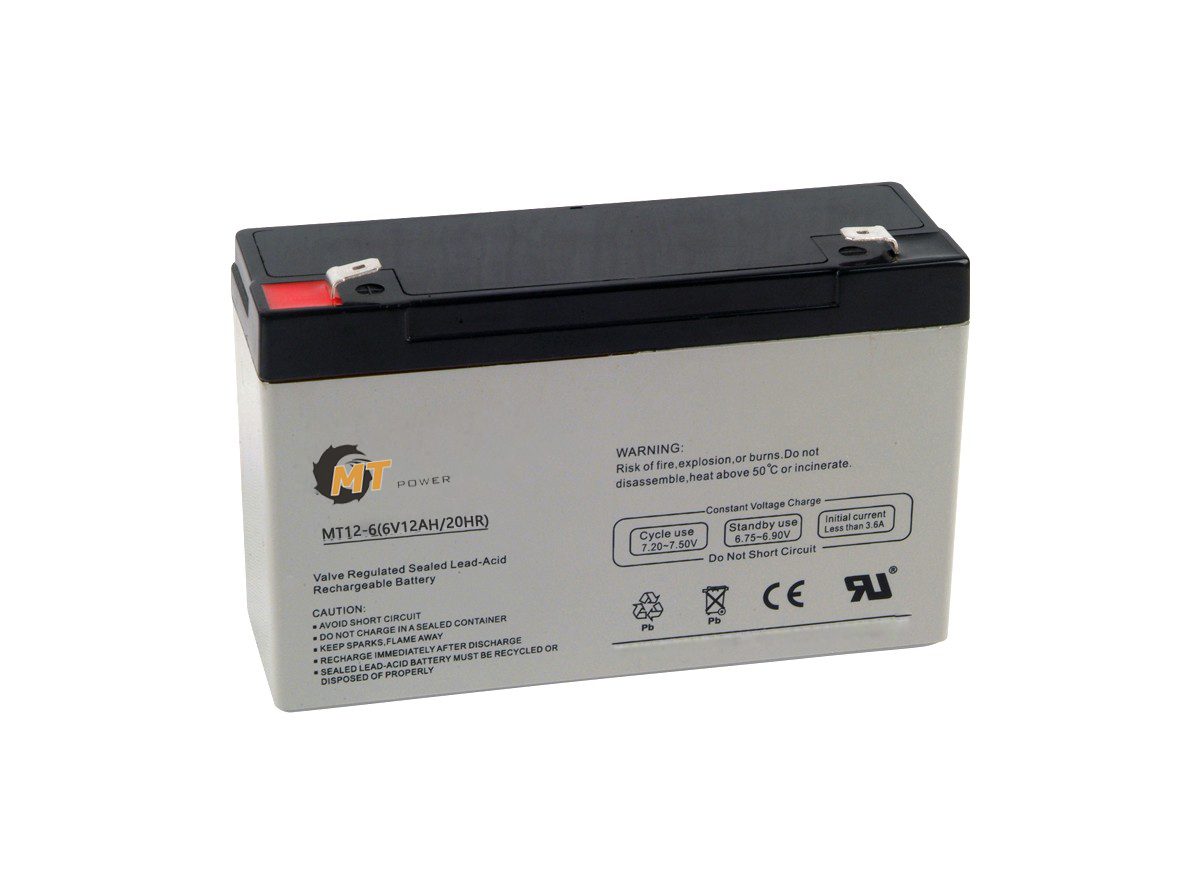

MT12-6 | 6 | 12 | 151 | 50 | 94 | 99 | 1.7 | F1/F2 |
MT14-6 | 6 | 14 | 151 | 50 | 94 | 99 | 1.95 | F1/F2 |
MT180-6 | 6 | 180 | 306 | 164 | 220 | 225 | 28.6 | F12 |
MT225-6 | 6 | 225 | 320 | 176 | 225 | 230 | 30.5 | F12 |
MT1.2-12 | 12 | 1.2 | 98 | 43 | 51 | 56 | 0.51 | F1/F2 |
MT2.3-12 | 12 | 2.3 | 178 | 35 | 61 | 66 | 0.87 | F1/F2 |
MT2.6-12 | 12 | 2.6 | 70 | 47 | 101 | 106 | 0.83 | F1/F2 |
MT2.9-12 | 12 | 2.9 | 90 | 70 | 101 | 106 | 0.95 | F1/F2 |
MT3.2-12 | 12 | 3.2 | 134 | 67 | 60 | 65 | 1.25 | F1/F2 |
MT4-12 | 12 | 4 | 90 | 70 | 101 | 106 | 1.25 | F1/F2 |
MT4.5-12 | 12 | 4.5 | 90 | 70 | 101 | 106 | 1.35 | F1/F2 |
MT5-12 | 12 | 5 | 90 | 70 | 101 | 106 | 1.41 | F1/F2 |
MT5.5-12 | 12 | 5.5 | 90 | 70 | 101 | 106 | 1.49 | F1/F2 |
MT6.5-12 | 12 | 6.5 | 151 | 65 | 94 | 99 | 1.9 | F1/F2 |
MT7-12 | 12 | 7 | 151 | 65 | 94 | 99 | 2 | F1/F2 |
MT7.2-12 | 12 | 7.2 | 151 | 65 | 94 | 99 | 2.1 | F1/F2 |
MT7.5-12 | 12 | 7.5 | 151 | 65 | 94 | 99 | 2.2 | F1/F2 |
MT8-12 | 12 | 8 | 151 | 65 | 94 | 99 | 2.18 | F1/F2 |
MT9-12 | 12 | 9 | 151 | 65 | 94 | 99 | 2.38 | F1/F2 |
MT9.5-12 | 12 | 9.5 | 151 | 65 | 94 | 99 | 2.48 | F1/F2 |
MT10-12 | 12 | 10 | 151 | 98 | 95 | 101 | 2.95 | F1/F2 |
MT12-12 | 12 | 12 | 151 | 98 | 95 | 101 | 3.2 | F1/F2 |
MT17-12 | 12 | 17 | 181 | 77 | 167 | 167 | 4.7 | F13 |
MT18-12 | 12 | 18 | 181 | 77 | 167 | 167 | 5 | F13 |
MT20-12 | 12 | 20 | 181 | 77 | 167 | 167 | 5.3 | F13 |
MT24-12 | 12 | 24 | 175 | 166 | 125 | 125 | 7.2 | F13 |
MT26-12 | 12 | 26 | 175 | 166 | 125 | 125 | 7.4 | F13 |
MT28-12 | 12 | 28 | 175 | 166 | 125 | 125 | 8 | F13 |
MT33-12 | 12 | 33 | 195 | 130 | 155 | 180 | 9.7 | F11 |
MT40-12 | 12 | 40 | 197 | 165 | 170 | 170 | 11.8 | F11 |
MT45-12 | 12 | 45 | 197 | 165 | 170 | 170 | 13.2 | F11 |
MT55-12 | 12 | 55 | 229 | 138 | 208 | 228 | 15.1 | F11 |
MT65-12 | 12 | 65 | 350 | 167 | 179 | 179 | 18.5 | F11 |
MT70-12 | 12 | 70 | 258 | 166 | 210 | 215 | 19.3 | F21 |
MT75-12 | 12 | 75 | 258 | 166 | 210 | 215 | 21 | F21 |
MT80-12 | 12 | 80 | 350 | 167 | 179 | 179 | 22 | F11 |
MT90-12 | 12 | 90 | 306 | 169 | 210 | 215 | 26 | F21 |
MT90S-12 | 12 | 90 | 330 | 171 | 215 | 222 | 24.8 | F21 |

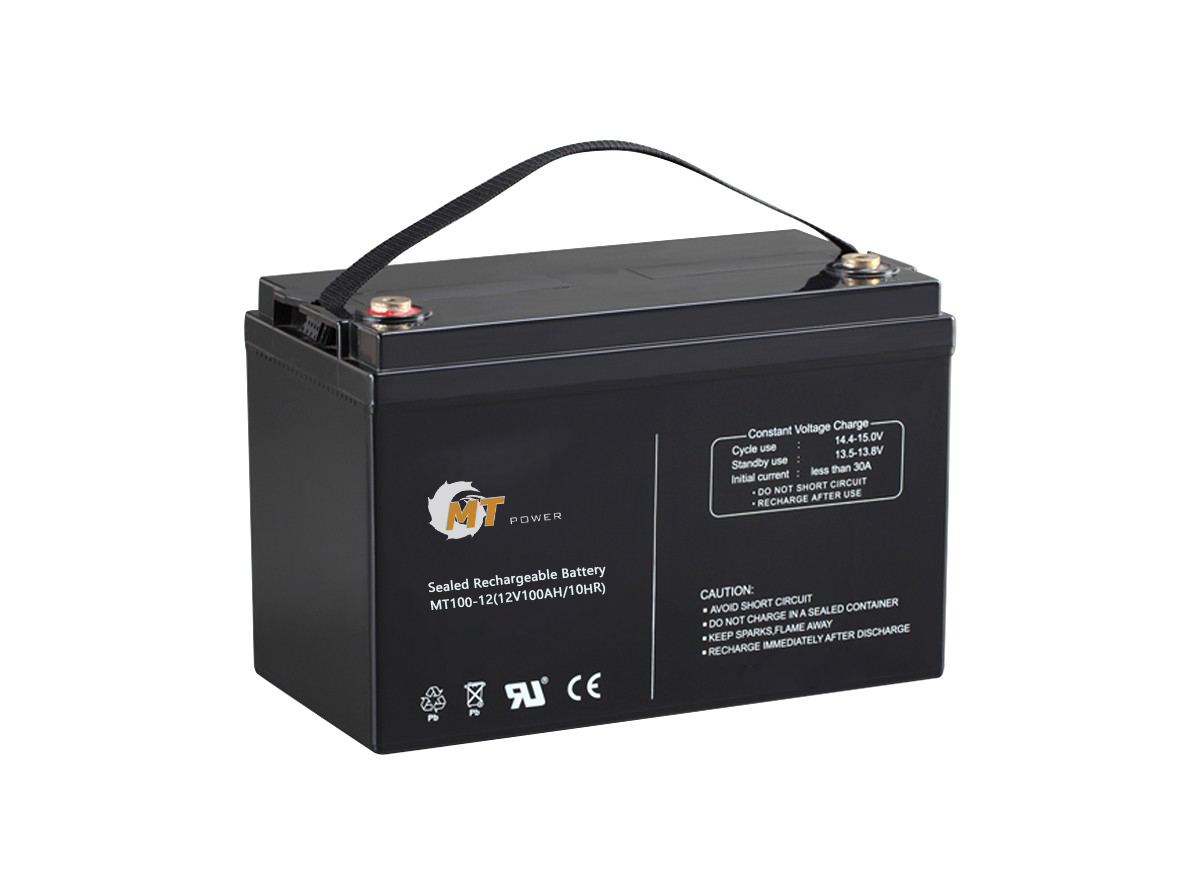

MT100-12 | 12 | 100 | 330 | 171 | 215 | 222 | 27.7 | F12 |
MT120-12 | 12 | 120 | 410 | 176 | 227 | 227 | 33 | F12 |
MT134-12 | 12 | 134 | 341 | 173 | 283 | 287 | 40 | F12 |
MT150-12 | 12 | 150 | 482 | 170 | 240 | 240 | 40 | F12 |
MT200-12 | 12 | 200 | 522 | 238 | 241 | 244 | 54.8 | F12 |
MT230-12 | 12 | 230 | 522 | 269 | 241 | 244 | 60 | F12 |
MT250-12 | 12 | 250 | 520 | 269 | 221 | 227 | 64.8 | F12 |
