LFP 12V-MT-battery

LFP 12V

Product Introduction

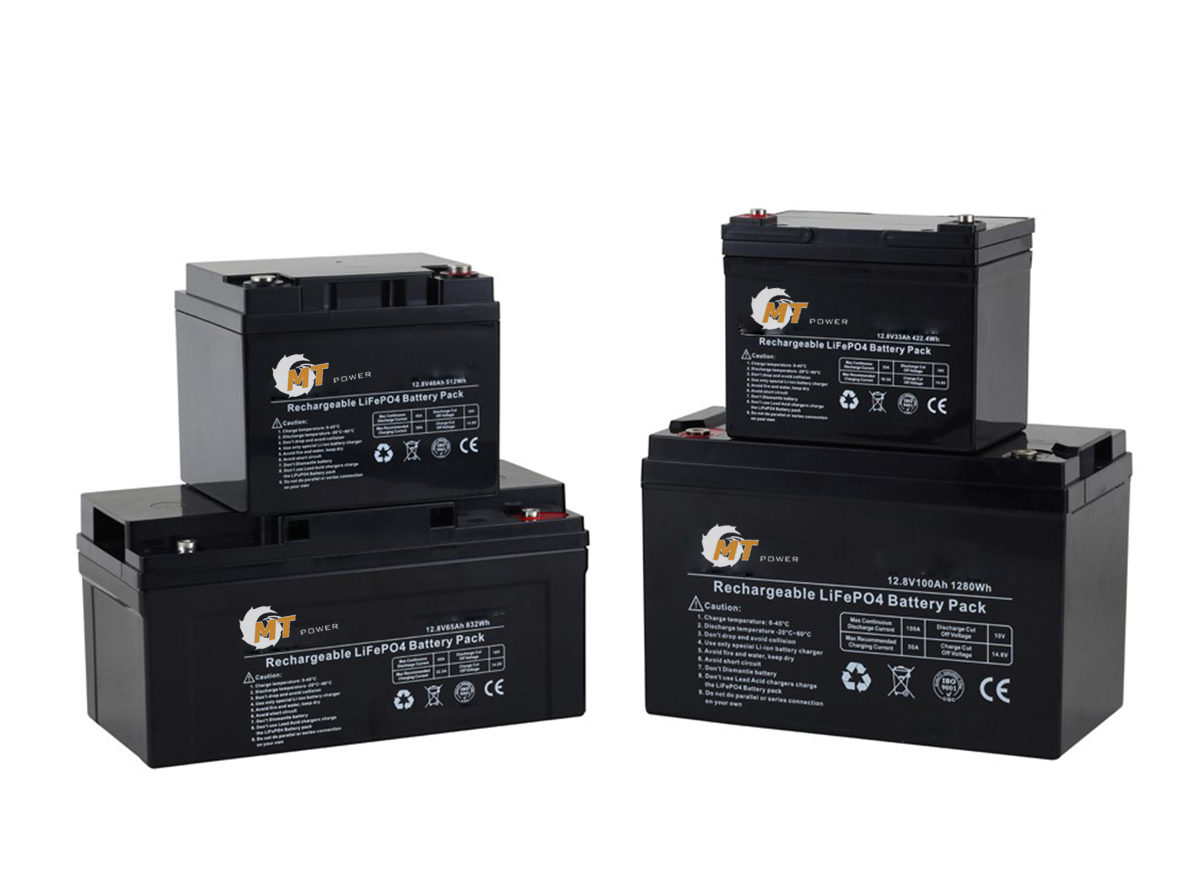

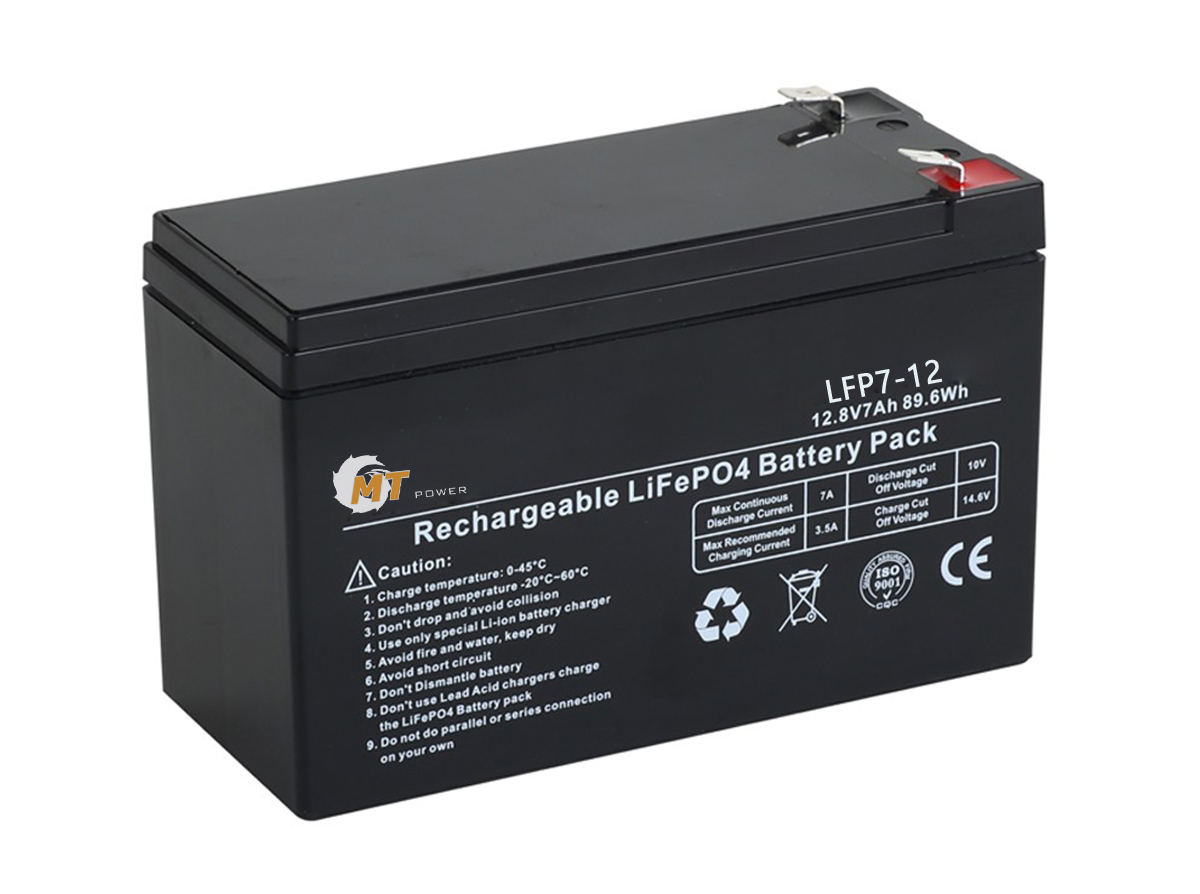

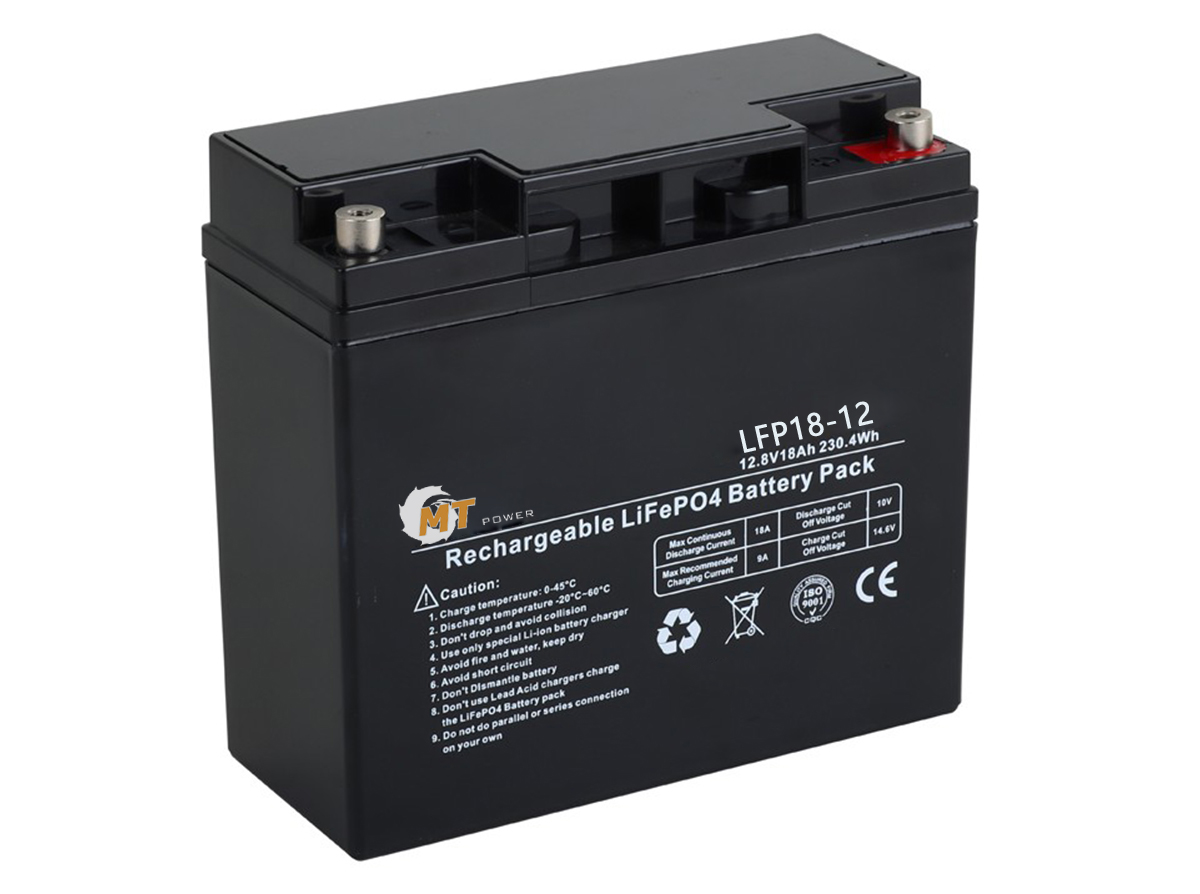

12.8V Lithium Iron Phosphate Battery

Product Features

- LiFePO4 cells, high consistency, long cycle life and much more safety

- UN38.3, CE certification for system

- ABS container, replace VRLA battery perfectly

- Fast charge performance

- -20~+55° C widely temperature range

- Maintenance free

- Integrated hardware BMS inside

- Independent protection for charge and discharge

- Over voltage, low voltage, over temperature and short circuit protection

- The cycle life over 3000 times @80%DOD

Product Parameters

LiFePO4	Nominal	Nominal	Nominal	Max Charging current	Max Discharge current	Impulse/3S	Dimensions（LWH)			Approx.	Terminal	IP class	In series	Blue trooth	LCD
	Voltage	Capacity	Energy	Max Charging current	Max Discharge current	Impulse/3S	Dimensions（LWH)			Weight	Terminal
	[V]	[Ah]	[Wh]	[A]	[A]	[A]	L [mm]	W [mm]	TH [mm]	[kg]	Type
LFP6-12	12.8	6	77	3	6	18	90	70	107	0.9	F2	IP50	Y	P	P
LFP8-12	12.8	8	102	4	8	24	151	65	94	1.1	F2	IP50	Y	P	P
LFP12-12	12.8	12	154	6	12	36	151	98	101	1.3	F2	IP50	Y	P	P
LFP20-12	12.8	20	256	10	20	60	181	77	167	2	Insert M5	IP50	Y	P	P
LFP30-12	12.8	30	384	15	30	90	195	130	168	3.6	Insert M5	IP50	Y	P	P
LFP40-12	12.8	40	512	20	40	120	195	130	168	5.6	Insert M6	IP50	Y	P	P
LFP50-12	12.8	50	640	25	50	150	229	138	213	6.3	Insert M8	IP50	Y	P	P
LFP60-12	12.8	60	768	25	50	150	229	138	213	9.4	Insert M8	IP50	Y	P	P
LFP80-12	12.8	80	1024	40	80	240	258	166	215	9.5	Insert M8	IP50	Y	P	P
LFP100-12A	12.8	100	1280	50	100	300	258	166	215	13	Insert M8	IP50	Y	P	P
LFP100-12B	12.8	100	1280	50	100	300	330	172	215	13	Insert M8	IP50	Y	P	P
LFP120-12A	12.8	120	1536	50	100	300	330	172	220	13.5	Insert M8	IP50	Y	P	P
LFP120-12B	12.8	120	1536	50	100	300	260	180	257	13.5	Insert M8	IP50	Y	P	P
LFP150-12	12.8	150	1920	50	100	300	330	172	220	20	Insert M8	IP50	Y	P	P
LFP200-12A	12.8	200	2560	50	100	300	483	170	240	22	Insert M8	IP50	Y	P	P
LFP200-12B	12.8	200	2560	50	100	300	522	240	220	22	Insert M8	IP50	Y	P	P
LFP300-12	12.8	300	3840	50	100	300	522	240	218	29.2	Insert M8	IP50	Y	P	P


SY12-100	12.8	100	1280	50	100	500	600	270	65	15	Anderson	IP30	Y	P	Y
SY12-100	12.8	100	1280	100	200	1000	600	270	65	15	Anderson	IP30	Y	P	Y
