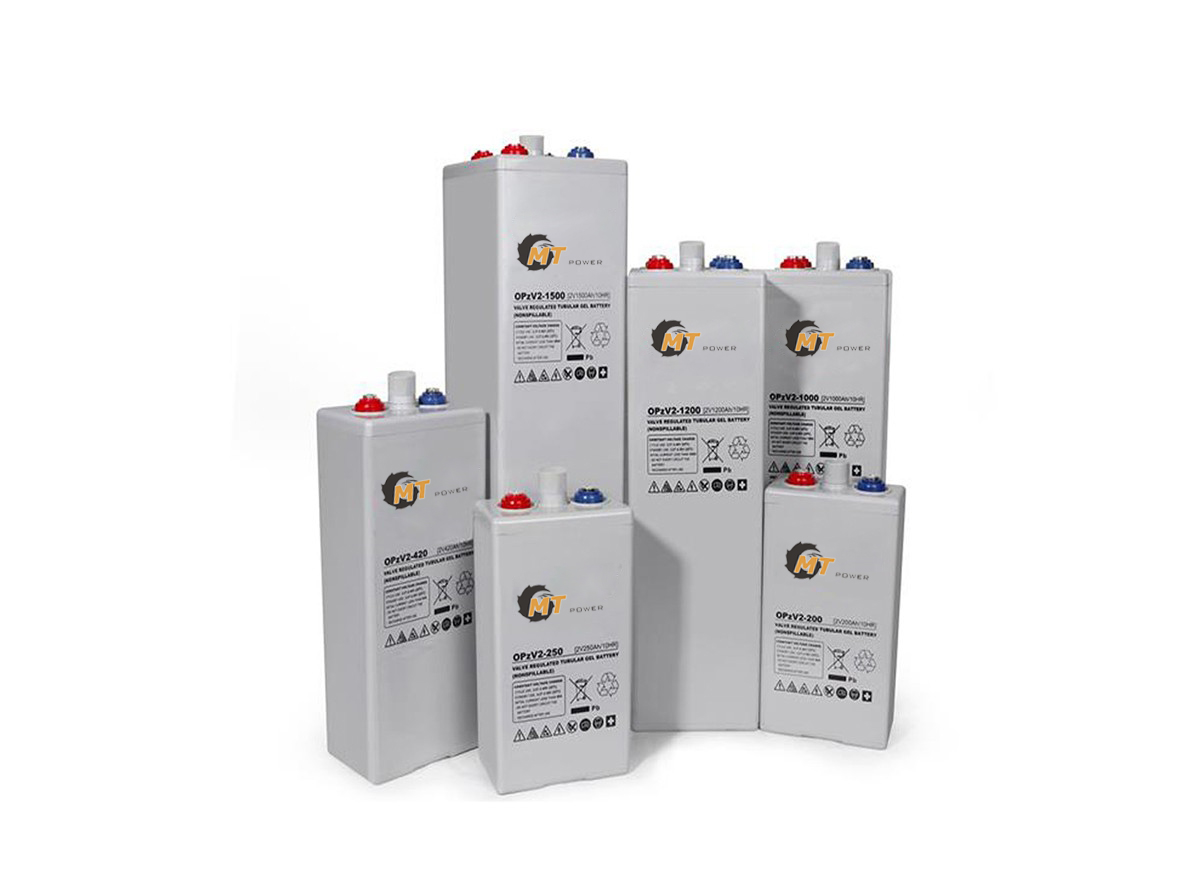

Lead Acid Battery

OPZV Series

Product Introduction

OPzV range battery adopts traditional gel technology and Tubular positive framework.The products are designed as longest service life for deep cycle power under harsh working environment.The life can max up to 20 years.

Product Features

-  The battery has a long life span, under float charging, ambient temperature 25°C, it can operate more than10 years.
-  Excellent recovery ability from deep discharge and keep a long cycle life under deep discharge.
-  Strong temperature resistance performance, work well under hot or cold weather
-  The battery has a low self-discharge, keep over 60% of the rated capacity after 2 years stored under 20°C.
-  Excellent deep cycle performance.
-  Superior low current discharge and constant power discharge performance.
-  Better charge reception capability than general VRLA battery
-  High standard level safety performance and reliability.
-  Modular and personified installation design.


Typical Applications:

-  Telecommunication equipment
-  Electronic instruments
-  Fire alarm and security devices
-  UPS power supply
-  Solar power system
-  Wind power system

Product Parameters

Model

Voltage(V)

Capacity(Ah)

Length(mm)

width(mm)

Height(mm)

Total Height(mm)

Weigth(kg)

Weight 2 (with acid)(kg)

OPzV200

2

200

103

206

356

389

19


OPzV250

2

250

124

206

356

389

22.6


OPzV300

2

300

145

206

356

389

26.5


OPzV350

2

350

124

206

473

505

28.5


OPzV420

2

420

145

206

473

505

33.5


OPzV500

2

500

166

206

473

505

38.5


OPzV600

2

600

145

206

646

678

47.5


OPzV800

2

800

191

210

646

678

63.5


OPzV1000

2

1000

233

210

646

678

77.5


OPzV1200

2

1200

275

210

646

678

91.6


OPzV1500

2

1500

275

210

795

827

113.5


OPzV2000

2

2000

399

212

770

802

153


OPzV2500

2

2500

487

212

770

802

189


OPzV3000

2

3000

576

212

770

802

226
