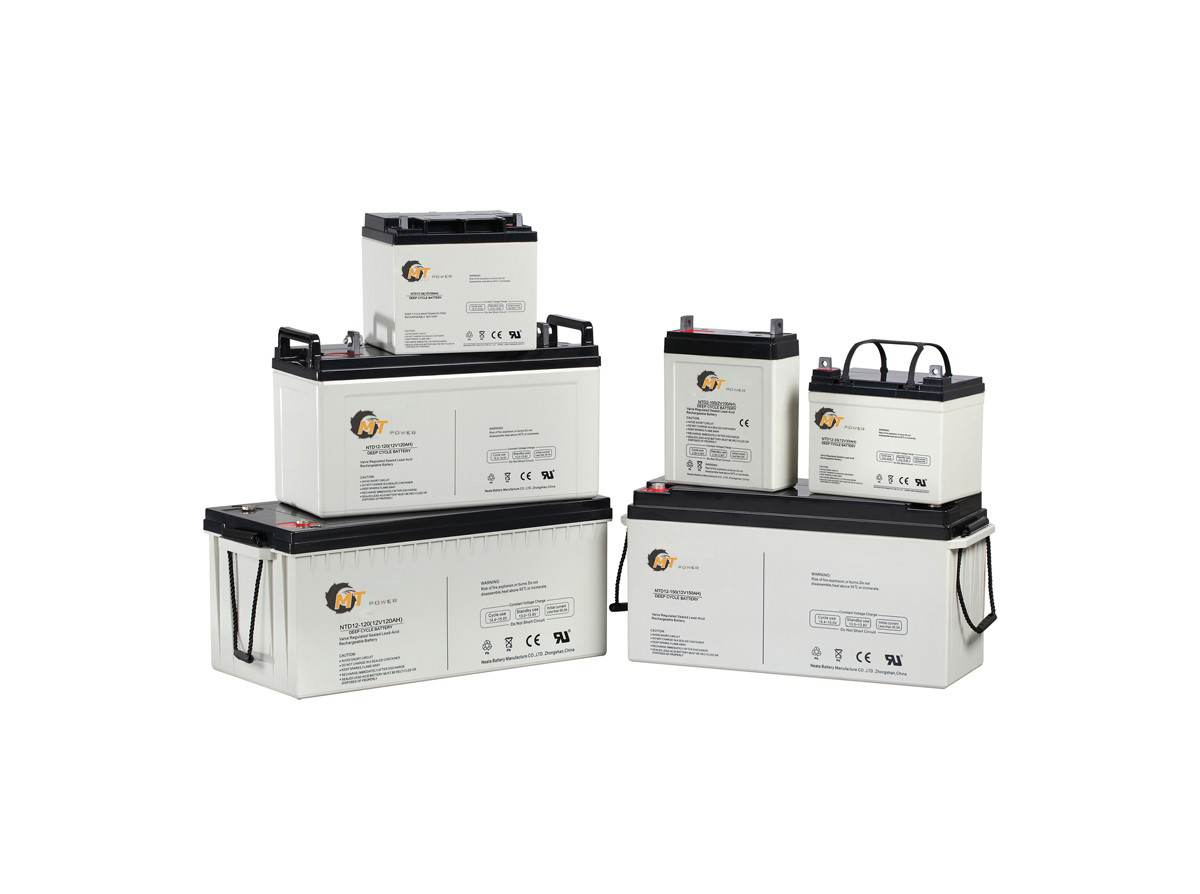

DC (AGM Deep Cycle) series is specially designed for frequent cyclic discharge. By using strong grids and specially designed active material, the DC series battery offers 30% more cyclic life than the standby series. It is suitable for UPS, solar & wind energy, telecom system, electric power system, electric vehicles, golf cars, etc.
- Ultra-long discharge cycle
- Used for power backup and energy storage
- Special polar plate design, which ensures a long cycle file
- High heat capacity, reducing risks of thermal runaway and dehydration, suitable for use in rigorous environments
- High power density Good deep discharge performance
Model | Voltage | Capacity | Dimension(mm) | Terminal | |||
(V) | (Ah) | Length | Width | Height | Total Height | ||
MTD10-12 | 12 | 10 | 151 | 98 | 95 | 101 | F1/F2 |
MTD12-12 | 12 | 12 | 151 | 98 | 95 | 101 | F1/F2 |
MTD17-12 | 12 | 17 | 181 | 77 | 167 | 167 | F13 |
MTD20-12 | 12 | 20 | 181 | 77 | 167 | 167 | F13 |
MTD24-12 | 12 | 24 | 175 | 166 | 125 | 125 | F13 |
MTD33-12 | 12 | 33 | 195 | 130 | 155 | 168 | F11 |
MTD40-12 | 12 | 40 | 197 | 165 | 170 | 170 | F11 |
MTD45-12 | 12 | 45 | 197 | 165 | 170 | 170 | F11 |
MTD55-12 | 12 | 55 | 229 | 138 | 208 | 213 | F11 |
MTD65-12 | 12 | 65 | 350 | 167 | 179 | 179 | F11 |
MTD75-12 | 12 | 75 | 258 | 166 | 210 | 215 | F21 |
MTD80-12 | 12 | 80 | 350 | 167 | 179 | 179 | F11 |
MTD90-12 | 12 | 90 | 306 | 169 | 210 | 215 | F21 |

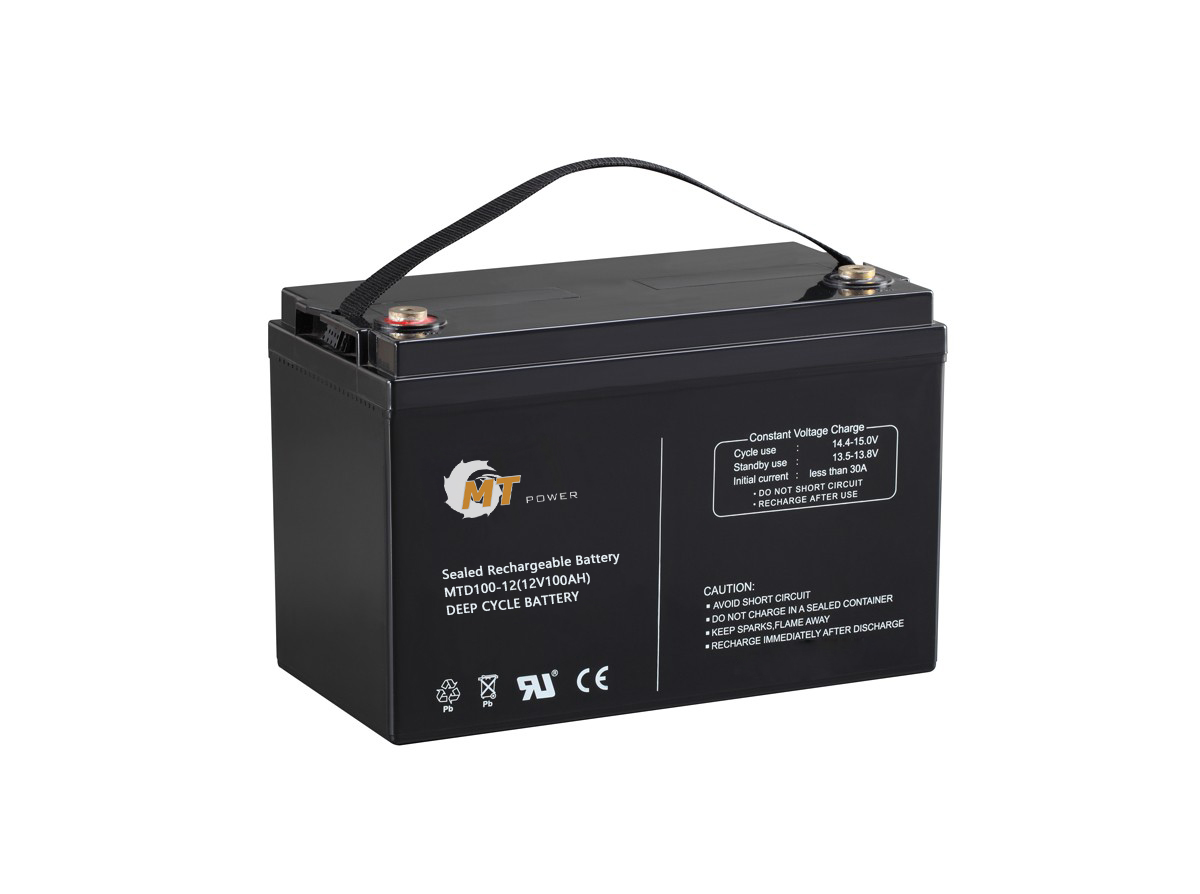

MTD100-12 | 12 | 100 | 330 | 171 | 215 | 220 | F12 |
MTD120-12 | 12 | 120 | 410 | 176 | 227 | 227 | F12 |
MTD134-12 | 12 | 134 | 341 | 173 | 283 | 287 | F12 |
MTD150-12 | 12 | 150 | 482 | 170 | 240 | 240 | F12 |
MTD175-12 | 12 | 175 | 530 | 209 | 215 | 220 | F12 |
MTD180-12 | 12 | 180 | 522 | 238 | 218 | 223 | F12 |

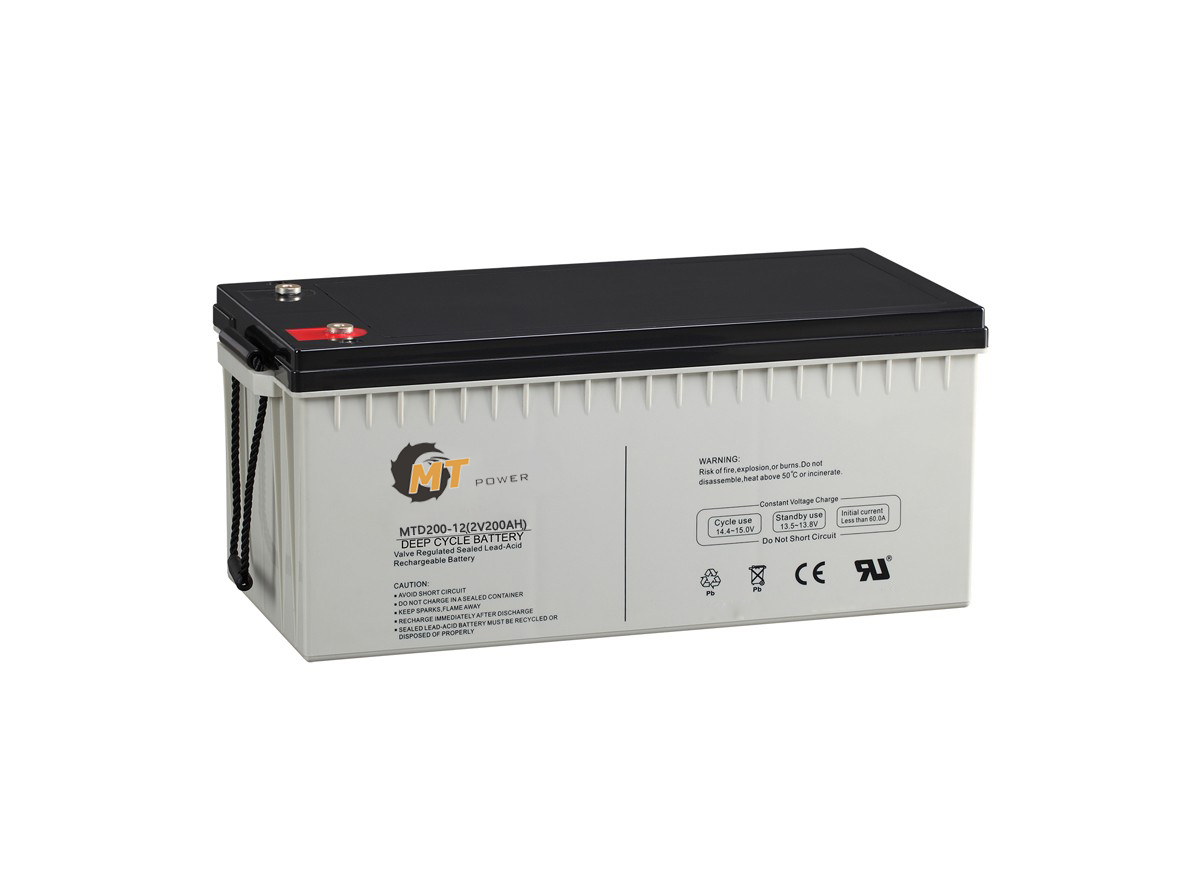

MTD200-12 | 12 | 200 | 522 | 238 | 218 | 223 | F12 |
MTD250-12 | 12 | 250 | 520 | 269 | 221 | 227 | F12 |
