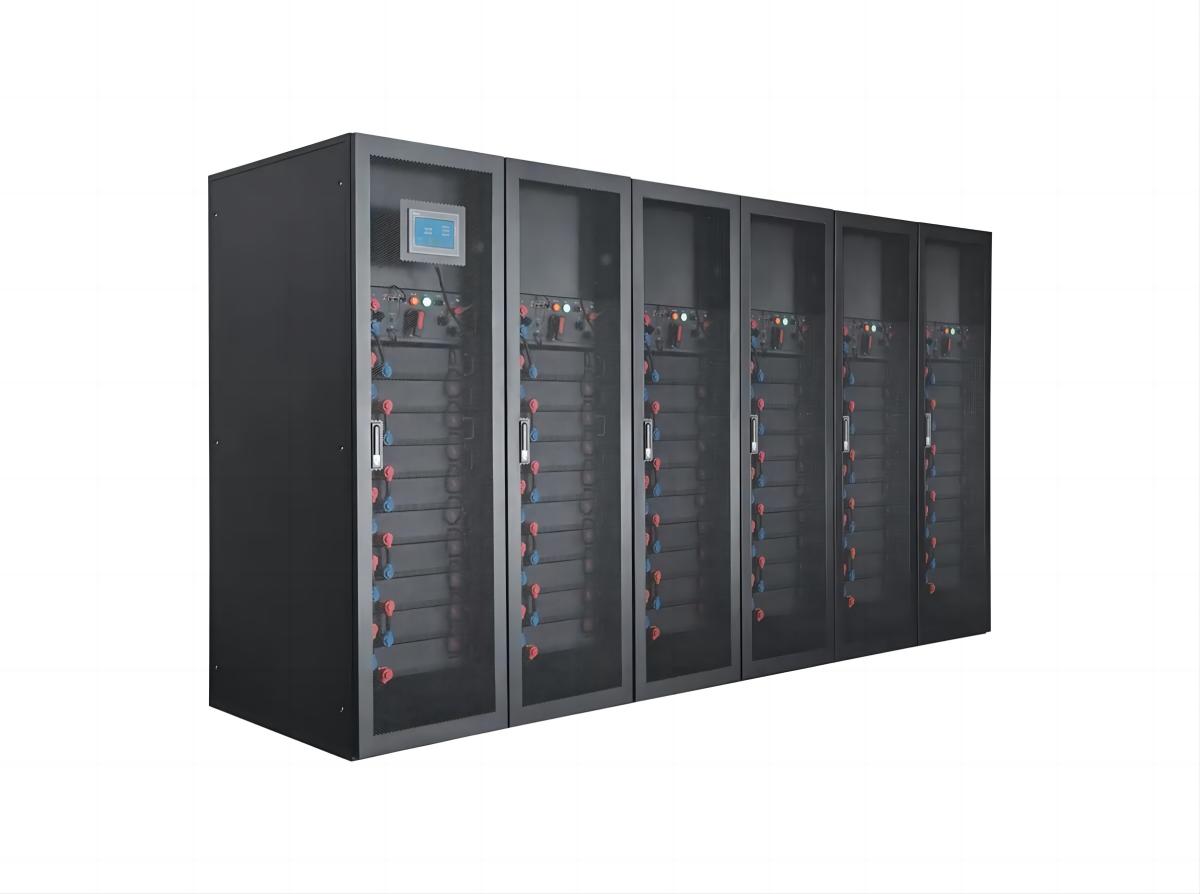

This Series products used high-rate LFP cells and self-developed BMS system,
Integrated remote management system and intelligent fire protection module, high reliability, good stability, long service life and excellent safety performance.
The product is characterized by high cost performance, durability and high consistency.
- Four-level security protection with high security performance to ensure the safety and reliability of the system (cell level, module level, Group level, system level)
- Excellent high-rate discharge performance supports up to 10C discharge, discharge efficiency ≥ 95%
- Full details management 100% battery cell management + Functional device management
- Long service life design life of 20 years
- Long cycle life 1C charge and discharge ≥ 3500 times; 4C discharge/0.5C charge ≥ 2000 times
- Intelligent cloud management system predictive operation and maintenance support, cloud monitoring operation and maintenance, support for multi-role management
- Intelligent fire control system (optional) built-in fire control system, 7*24 guarantee system and facility safety
- Suitable for all brands of UPS or other inverter devices
- Data center
- Ffinancial institutions
- Rail Transit
- Wind-solar hybrid energy storage
- Backup power in areas without utility power
MODEL | Battery type | Nominal voltage | Capacity (Ah) | Power | Charging Votage | charging (A) | Max discharging power | Dimision(MM) | Weight | |||
(V) | W | (V) | usually | Max | L | W | H | (kg) | ||||
SC48-20 | 48V20Ah | 48 | 20 | 2000 | 51~51.75(54) | 10 | 20 | 2000W(3000W/60S) | 330 | 442 | 86 | 12.5 |
SC48-27 | 48V30Ah | 48 | 27 | 2000 | 51~51.75(54) | 15 | 27 | 2000W(3000W/60S) | 350 | 442 | 86 | 18 |
SC48-50 | 48V50Ah | 48 | 50 | 4000 | 51~51.75(54) | 25 | 50 | 4000W(5000W/60S) | 400 | 442 | 86 | 25 |
SC48-80 | 48V80Ah | 48 | 80 | 4000 | 51~51.75(54) | 40 | 80 | 4000W(5000W/60S) | 450 | 442 | 86 | 31 |
SC48-100 | 48V100Ah | 48 | 100 | 4000 | 51~51.75(54) | 50 | 100 | 4000W(5000W/60S) | 450 | 442 | 130 | 42 |
SC48-150 | 48V150Ah | 48 | 150 | 4000 | 51~51.75(54) | 50 | 100 | 4000W(5000W/60S) | 500 | 442 | 174 | 64 |
SC48-200 | 48V200Ah | 48 | 200 | 4000 | 51~51.75(54) | 50 | 100 | 4000W(5000W/60s) | 500 | 442 | 218 | 82 |
SC51-20 | 51.2V20Ah | 51.2 | 20 | 2000 | 54.4~55.2(57.6) | 10 | 20 | 2000W(3000W/60S) | 330 | 442 | 86 | 13 |
SC51-27 | 51.2V30Ah | 51.2 | 27 | 2000 | 54.4~55.2(57.6) | 15 | 27 | 2000W(3000W/60S) | 350 | 442 | 86 | 18.8 |
SC51-50 | 51.2V50Ah | 51.2 | 50 | 4000 | 54.4~55.2(57.6) | 25 | 50 | 4000W(5000W/60S) | 400 | 442 | 86 | 27 |
SC51-80 | 51.2V80Ah | 51.2 | 80 | 4000 | 54.4~55.2(57.6) | 40 | 80 | 4000W(5000W/60S) | 450 | 442 | 86 | 33 |
SC51-100 | 51.2V100Ah | 51.2 | 100 | 4000 | 54.4~55.2(57.6) | 50 | 100 | 4000W(5000W/60S) | 450 | 442 | 130 | 45 |
SC51-150 | 51.2V150Ah | 51.2 | 150 | 4000 | 54.4~55.2(57.6) | 50 | 100 | 4000W(5000W/60S) | 500 | 442 | 174 | 67 |
SC51-200 | 51.2V200Ah | 51.2 | 200 | 4000 | 54.4~55.2(57.6) | 50 | 100 | 4000W(5000W/60s) | 500 | 442 | 218 | 86 |
SC76-20 | 76.8V20Ah | 76.8 | 20 | 3000 | 81.6~82.8(86.4) | 10 | 20 | 3000W(4500W/60S) | 500 | 442 | 86 | 19 |
SC76-27 | 76.8V30Ah | 76.8 | 27 | 3000 | 81.6~82.8(86.4) | 15 | 27 | 3000W(4500W/60S) | 500 | 442 | 86 | 23 |
SC76-50 | 76.8V50Ah | 76.8 | 50 | 6000 | 81.6~82.8(86.4) | 25 | 50 | 6000W(7200W/60S) | 600 | 442 | 130 | 40 |
SC76-80 | 76.8V80Ah | 76.8 | 80 | 6000 | 81.6~82.8(86.4) | 40 | 80 | 6000W(7200W/60S) | 600 | 442 | 130 | 49 |
SC76-100 | 76.8V100Ah | 76.8 | 100 | 6000 | 81.6~82.8(86.4) | 50 | 100 | 6000W(7200W/60S) | 630 | 442 | 130 | 71 |
SC76-150 | 76.8V150Ah | 76.8 | 150 | 6000 | 81.6~82.8(86.4) | 50 | 100 | 6000W(7200W/60S) | 630 | 442 | 218 | 88 |
SC76-200 | 76.8V200Ah | 76.8 | 200 | 6000 | 81.6~82.8(86.4) | 50 | 100 | 6000W(7200W/60S) | 650 | 442 | 218 | 110 |
SC102-20 | 96V20Ah | 102.4 | 20 | 4000 | 108.8~110.4(115.2) | 10 | 20 | 4000W(5000W/60S) | 500 | 442 | 86 | 25 |
SC102-27 | 96V30Ah | 102.4 | 27 | 4000 | 108.8~110.4(115.2) | 15 | 27 | 4000W(5000W/60S) | 600 | 442 | 86 | 36.5 |
SC102-50 | 96V50Ah | 102.4 | 50 | 8000 | 108.8~110.4(115.2) | 25 | 50 | 8000W(10000W/60S) | 650 | 442 | 130 | 52 |
SC102-80 | 96V80Ah | 102.4 | 80 | 8000 | 108.8~110.4(115.2) | 40 | 80 | 8000W(10000W/60S) | 550 | 442 | 174 | 64 |
SC102-100 | 96V100Ah | 102.4 | 100 | 8000 | 108.8~110.4(115.2) | 50 | 100 | 8000W(10000W/60S) | 650 | 442 | 174 | 86 |
SC102-150 | 96V150Ah | 102.4 | 150 | 8000 | 108.8~110.4(115.2) | 50 | 100 | 8000W(10000W/60S) | 650 | 442 | 306 | 130 |
SC102-200 | 96V200Ah | 102.4 | 200 | 8000 | 108.8~110.4(115.2) | 50 | 100 | 8000W(10000W/60S) | 650 | 442 | 350 | 168 |
SC192-20 | 192V20Ah | 192 | 20 | 10KW | 204~207(216) | 10 | 20 | 10KW | 700 | 442 | 130 | 39 |
SC192-27 | 192V27Ah | 192 | 27 | 20KW | 204~207(216) | 15 | 27 | 20KW | 700 | 442 | 130 | 48 |
SC204-20 | 204.8V20Ah | 204.8 | 20 | 20KW | 217.6~220.8(230.4) | 10 | 20 | 20KW | 700 | 442 | 130 | 42 |
SC204-27 | 204.8V30Ah | 204.8 | 27 | 20KW | 217.6~220.8(230.4) | 15 | 27 | 20KW | 700 | 442 | 130 | 51 |
TC40 | 204.8V50Ah | 204.8 | 50 | max.48.64KW | 217.6~220.8(230.4) | 25 | 50 | 39.68KW/15min | 800 | 600 | 1165 | 215 |
NC16 | 204.8V80Ah | 204.8 | 80 | max.23.88KW | 217.6~220.8(230.4) | 40 | 80 | 12KW/60min | 800 | 600 | 1165 | 246 |
TC40E | 204.8V100Ah | 204.8 | 100 | max.48.64KW | 217.6~220.8(230.4) | 50 | 100 | 40.56KW/30min | 800 | 600 | 1165 | 294 |
NC28 | 204.8V150Ah | 204.8 | 150 | max.48.64KW | 217.6~220.8(230.4) | 75 | 150 | 30.28KW/60min | 1000 | 600 | 1165 | 382 |
NC40 | 204.8V200Ah | 204.8 | 200 | max.48.64KW | 217.6~220.8(230.4) | 100 | 200 | 40.52KW/60min | 1000 | 600 | 1165 | 458 |
SC240-20 | 240V20Ah | 240 | 20 | 15KW | 255~258.75(270) | 10 | 20 | 12.5KW | 700 | 442 | 130 | 50 |
SC240-27 | 240V30Ah | 240 | 27 | 30KW | 255~258.75(270) | 15 | 27 | 25KW | 650 | 442 | 174 | 62 |
TC50Y | 240V50Ah | 240 | 50 | max.57KW | 255~258.75(270) | 25 | 50 | 46.5KW/15min | 800 | 600 | 1165 | 235 |
NC20Y | 240V80Ah | 240 | 80 | max.28KW | 255~258.75(270) | 40 | 80 | 18.75KW/60min | 800 | 600 | 1165 | 270 |
TC100Y | 240V100Ah | 240 | 100 | max.114KW | 255~258.75(270) | 50 | 100 | 93KW/15min | 1000 | 600 | 1165 | 360 |
NC35Y | 240V150Ah | 240 | 150 | max.57KW | 255~258.75(270) | 75 | 150 | 35.3KW/60min | 1000 | 600 | 1165 | 435 |
NC50Y | 240V200Ah | 240 | 200 | max.57KW | 255~258.75(270) | 100 | 200 | 47.5KW/60min | 1000 | 600 | 1165 | 525 |
TC50 | 256V50Ah | 256 | 50 | max.60.8KW | 272~276(288) | 25 | 50 | 49.6KW/15min | 800 | 600 | 1165 | 242.5 |
TC50E | 256V100Ah | 256 | 100 | max.60.8KW | 272~276(288) | 50 | 100 | 50.7KW/30min | 800 | 600 | 1165 | 340 |
NC35 | 256V150Ah | 256 | 150 | max.60.8KW | 272~276(288) | 75 | 150 | 37.85KW/60mi | 1000 | 600 | 1165 | 450 |
NC50 | 256V200Ah | 256 | 200 | max.60.8KW | 272~276(288) | 100 | 200 | 50.65KW/60min | 1000 | 600 | 1165 | 545 |
NC24Y | 384V20Ah | 384 | 20 | max.21.6KW | 408~414(432) | 10 | 20 | 19.2KW/20min | 800 | 600 | 1165 | 209 |
TC48Y | 384V30Ah | 384 | 27 | max.44.8KW | 408~414(432) | 15 | 27 | 41.6KW/10min | 800 | 600 | 1165 | 257 |
TC80Y | 384V50Ah | 384 | 50 | max.91.2KW | 408~414(432) | 25 | 50 | 74.4KW/15min | 800 | 600 | 1500 | 343 |
NC32Y | 384V80Ah | 384 | 80 | max.44.8KW | 408~414(432) | 40 | 80 | 30KW/60min | 800 | 600 | 1500 | 396 |
TC160Y | 384V100Ah | 384 | 100 | max.182.4KW | 408~414(432) | 50 | 100 | 148.8KW/60min | 1000 | 600 | 1500 | 540 |
NC56Y | 384V150Ah | 384 | 150 | max.91.2KW | 408~414(432) | 75 | 150 | 56.8KW/60min | 1000 | 600 | 1500 | 660 |
NC80Y | 384V200Ah | 384 | 200 | max.91.2KW | 408~414(432) | 100 | 200 | 76KW/60min | 1000 | 600 | 1500 | 804 |
NC24 | 409.6V20Ah | 409.6 | 20 | max.23.04KW | 435.2~441.6(460.8) | 10 | 20 | 20.48KW/20min | 800 | 600 | 1165 | 217 |
TC48 | 409.6V30Ah | 409.6 | 27 | max.47.76KW | 435.2~441.6(460.8) | 15 | 27 | 44.4KW/10min | 800 | 600 | 1165 | 265 |
TC80 | 409.6V50Ah | 409.6 | 50 | max.97.28KW | 435.2~441.6(460.8) | 25 | 50 | 79.36KW/15min | 800 | 600 | 1500 | 355 |
NC32 | 409.6V80Ah | 409.6 | 80 | max.47.76KW | 435.2~441.6(460.8) | 40 | 80 | 32KW/60min | 800 | 600 | 1500 | 414 |
TC80E | 409.6V100Ah | 409.6 | 100 | max.97.28KW | 435.2~441.6(460.8) | 50 | 100 | 81.12KW/30min | 800 | 600 | 1500 | 510 |
TC160 | 409.6V100Ah | 409.6 | 100 | max.194.56KW | 435.2~441.6(460.8) | 50 | 100 | 158.72KW/15min | 1000 | 600 | 2000 | 566 |
NC56 | 409.6V150Ah | 409.6 | 150 | max.97.28KW | 435.2~441.6(460.8) | 75 | 150 | 60.56KW/60min | 1000 | 600 | 1500 | 686 |
NC80 | 409.6V200Ah | 409.6 | 200 | max.97.28KW | 435.2~441.6(460.8) | 100 | 200 | 81.04KW/60min | 1000 | 600 | 1500 | 836 |
NC30Y | 480V20Ah | 480 | 20 | max.27KW | 510~517.5(540) | 10 | 20 | 24KW/20min | 800 | 600 | 1500 | 265 |
TC60Y | 480V30Ah | 480 | 27 | max.56KW | 510~517.5(540) | 15 | 27 | 52KW/10min | 800 | 600 | 1500 | 325 |
TC100Y | 480V50Ah | 480 | 50 | max.114KW | 510~517.5(540) | 25 | 50 | 93KW/10min | 800 | 600 | 1500 | 395 |
NC40Y | 480V80Ah | 480 | 80 | max.56KW | 510~517.5(540) | 40 | 80 | 37.5KW/60min | 800 | 600 | 1500 | 460 |
TC200Y | 480V100Ah | 480 | 100 | max.228KW | 510~517.5(540) | 50 | 100 | 186KW/15min | 1000 | 600 | 2000 | 680 |
NC70Y | 480V150Ah | 480 | 150 | max.114KW | 510~517.5(540) | 75 | 150 | 71KW/60min | 1000 | 600 | 2000 | 830 |
NC100Y | 480V200Ah | 480 | 200 | max.114KW | 510~517.5(540) | 100 | 200 | 95KW/60min | 1000 | 600 | 2000 | 1010 |
NC30 | 512V20Ah | 512 | 20 | max.28.8KW | 544~552(576) | 10 | 20 | 25.6KW/20min | 800 | 600 | 1500 | 275 |
TC60 | 512V30Ah | 512 | 27 | max.59.7KW | 544~552(576) | 15 | 27 | 55.5KW/10min | 800 | 600 | 1500 | 335 |
TC100 | 512V50Ah | 512 | 50 | max.121.6KW | 544~552(576) | 25 | 50 | 99.2KW/15min | 800 | 600 | 1500 | 405 |
NC40 | 512V80Ah | 512 | 80 | max.59.7KW | 544~552(576) | 40 | 80 | 40KW/60min | 800 | 600 | 1500 | 480 |
TC100E | 512V100Ah | 512 | 100 | max.121.6KW | 544~552(576) | 50 | 100 | 101.4KW/30min | 800 | 600 | 1500 | 525 |
TC200 | 512V100Ah | 512 | 100 | max.243.2KW | 544~552(576) | 50 | 100 | 198.4KW/15min | 1000 | 600 | 2000 | 710 |
NC70 | 512V150Ah | 512 | 150 | max.121.6KW | 544~552(576) | 75 | 150 | 75.5KW/60min | 1000 | 600 | 2000 | 860 |
NC100 | 512V200Ah | 512 | 200 | max.121.6KW | 544~552(576) | 100 | 200 | 101.3KW/60min | 1000 | 600 | 2000 | 1050 |
NC36 | 614.4V20Ah | 614.4 | 20 | max.34.56KW | 652.8~662.4(691.2) | 10 | 20 | 30.72KW/20min | 800 | 600 | 1500 | 303 |
TC72 | 614.4V30Ah | 614.4 | 27 | max.71.64KW | 652.8~662.4(691.2) | 15 | 27 | 66.6KW/10min | 800 | 600 | 1500 | 343 |
TC120 | 614.4V50Ah | 614.4 | 50 | max.145.92KW | 652.8~662.4(691.2) | 25 | 50 | 119.04KW/15min | 800 | 600 | 2000 | 500 |
NC48 | 614.4V80Ah | 614.4 | 80 | max.71.64KW | 652.8~662.4(691.2) | 40 | 80 | 48KW/60min | 800 | 600 | 2000 | 588 |
TC120E | 614.4V100Ah | 614.4 | 100 | max.145.92KW | 652.8~662.4(691.2) | 50 | 100 | 121.68KW/30min | 800 | 600 | 2000 | 732 |
TC240 | 614.4V100Ah | 614.4 | 100 | max.291.84KW | 652.8~662.4(691.2) | 50 | 100 | 198.4KW/15min | 1000 | 600 | 2000 | 816 |
NC84 | 614.4V150Ah | 614.4 | 150 | max.145.92KW | 652.8~662.4(691.2) | 75 | 150 | 90.84KW/60min | 1000 | 600 | 2300 | 1016 |
NC120 | 614.4V200Ah | 614.4 | 200 | max.145.92KW | 652.8~662.4(691.2) | 100 | 200 | 121.56KW/60min | 1000 | 600 | 2300 | 1144 |
NC42 | 716.8V20Ah | 716.8 | 20 | max.40.32 | 761.6~772.8(806.4) | 10 | 20 | 35.84KW/20min | 800 | 600 | 2000 | 331 |
TC84 | 716.8V30Ah | 716.8 | 27 | max.83.58 | 761.6~772.8(806.4) | 15 | 27 | 77.7KW/10min | 800 | 600 | 2000 | 383 |
TC140 | 716.8V50Ah | 716.8 | 50 | max.170.24KW | 761.6~772.8(806.4) | 25 | 50 | 138.88KW/15min | 800 | 600 | 2000 | 550 |
NC56 | 716.8V80Ah | 716.8 | 80 | max.83.58 | 761.6~772.8(806.4) | 40 | 80 | 56KW/60min | 800 | 600 | 2000 | 656 |
TC140E | 716.8V100Ah | 716.8 | 100 | max.170.24KW | 761.6~772.8(806.4) | 50 | 100 | 141.96KW/30min | 800 | 600 | 2000 | 824 |
TC280 | 716.8V100Ah | 716.8 | 100 | max.340.76KW | 761.6~772.8(806.4) | 50 | 100 | 277.76KW/15min | 1000 | 600 | 2000 | 922 |
NC98 | 716.8V150Ah | 716.8 | 150 | max.170.24KW | 761.6~772.8(806.4) | 75 | 150 | 105.98KW/60min | 1000 | 1150 | 1500 | 1232 |
NC140 | 716.8V200Ah | 716.8 | 200 | max.170.24KW | 761.6~772.8(806.4) | 100 | 200 | 141.82KW/60min | 1000 | 1150 | 1500 | 1398 |
NC45 | 768V20Ah | 768 | 20 | max.43.2KW | 816~828(864) | 10 | 20 | 38.4KW/20min | 800 | 600 | 2000 | 345 |
TC90 | 768V30Ah | 768 | 27 | max.89.55KW | 816~828(864) | 15 | 27 | 83.25KW/10min | 800 | 600 | 2000 | 403 |
TC150 | 768V50Ah | 768 | 50 | max.182.4KW | 816~828(864) | 25 | 50 | 148.8KW/15min | 800 | 600 | 2300 | 592.5 |
NC60 | 768V80Ah | 768 | 80 | max.89.55KW | 816~828(864) | 40 | 80 | 60KW/15min | 800 | 600 | 2300 | 705 |
TC150E | 768V100Ah | 768 | 100 | max.182.4KW | 816~828(864) | 50 | 100 | 152.1KW/30min | 800 | 600 | 2300 | 885 |
TC300 | 768V100Ah | 768 | 100 | max.364.8KW | 816~828(864) | 50 | 100 | 297.6KW/15min | 1000 | 600 | 2300 | 1220 |
NC105 | 768V150Ah | 768 | 150 | max.182.4KW | 816~828(864) | 75 | 150 | 113.55KW/60min | 1000 | 1150 | 1500 | 1300 |
NC150 | 768V200Ah | 768 | 200 | max.182.4KW | 816~828(864) | 100 | 200 | 151.95KW/60min | 1000 | 1150 | 1500 | 1485 |
